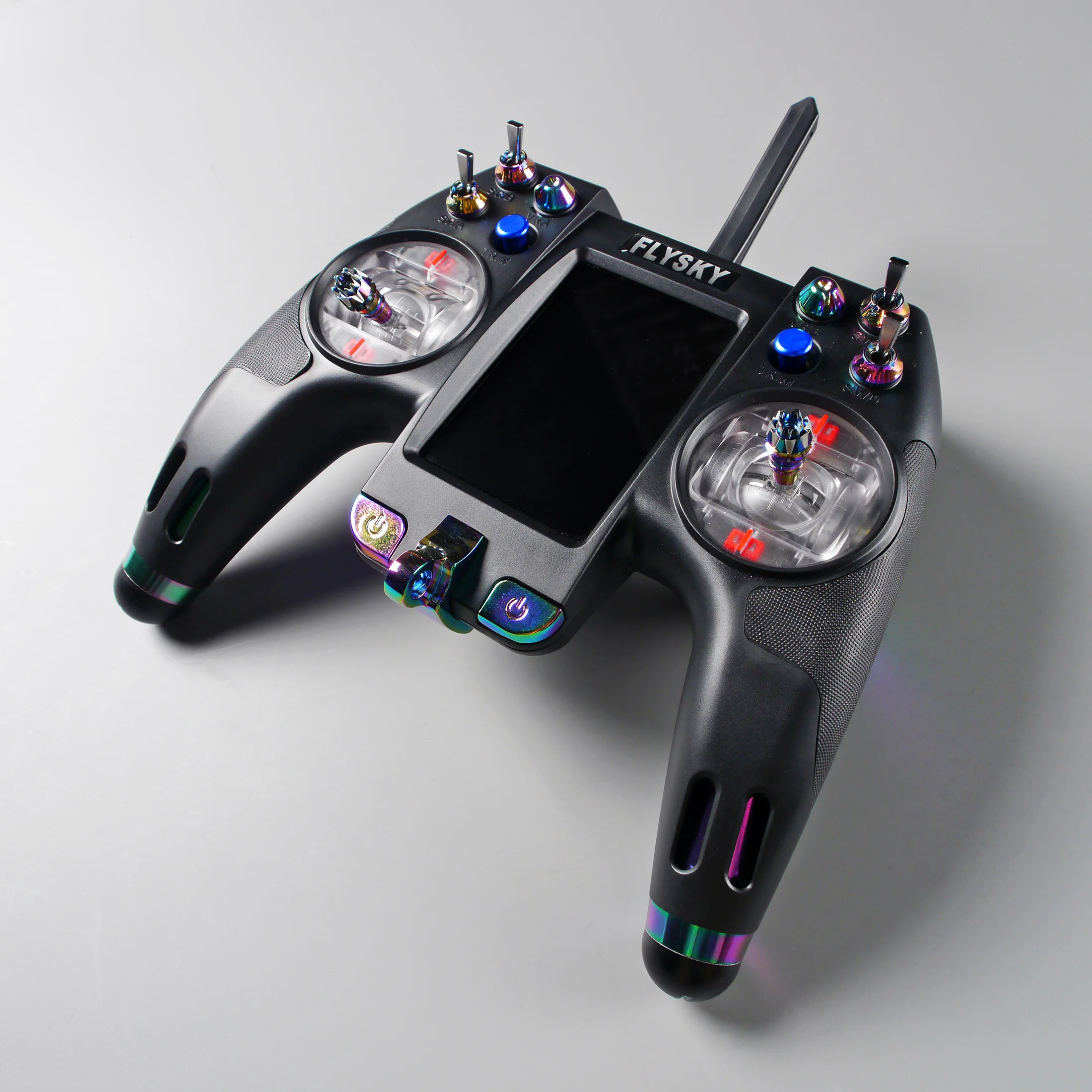

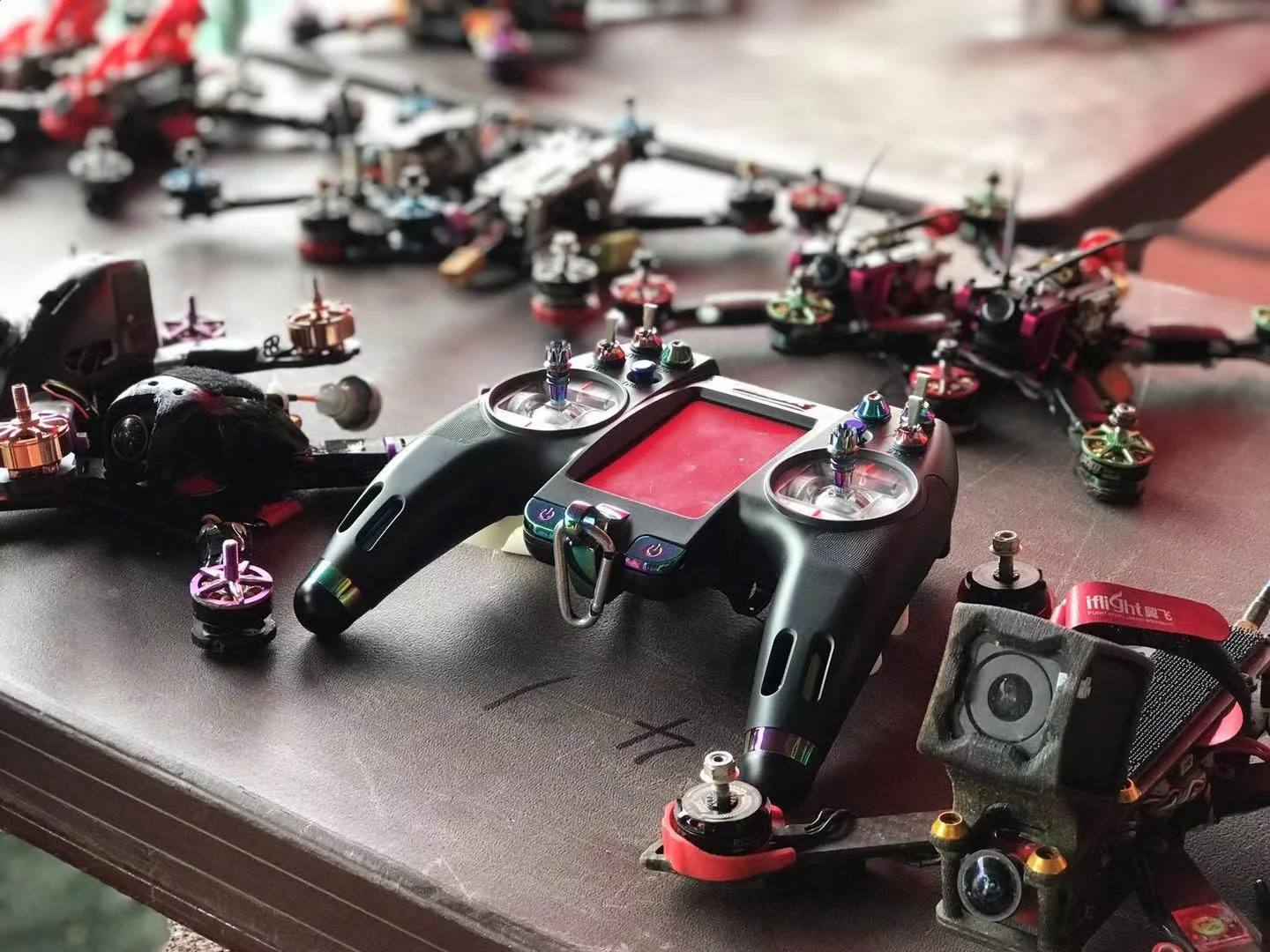

NIRVANA

A New Generation

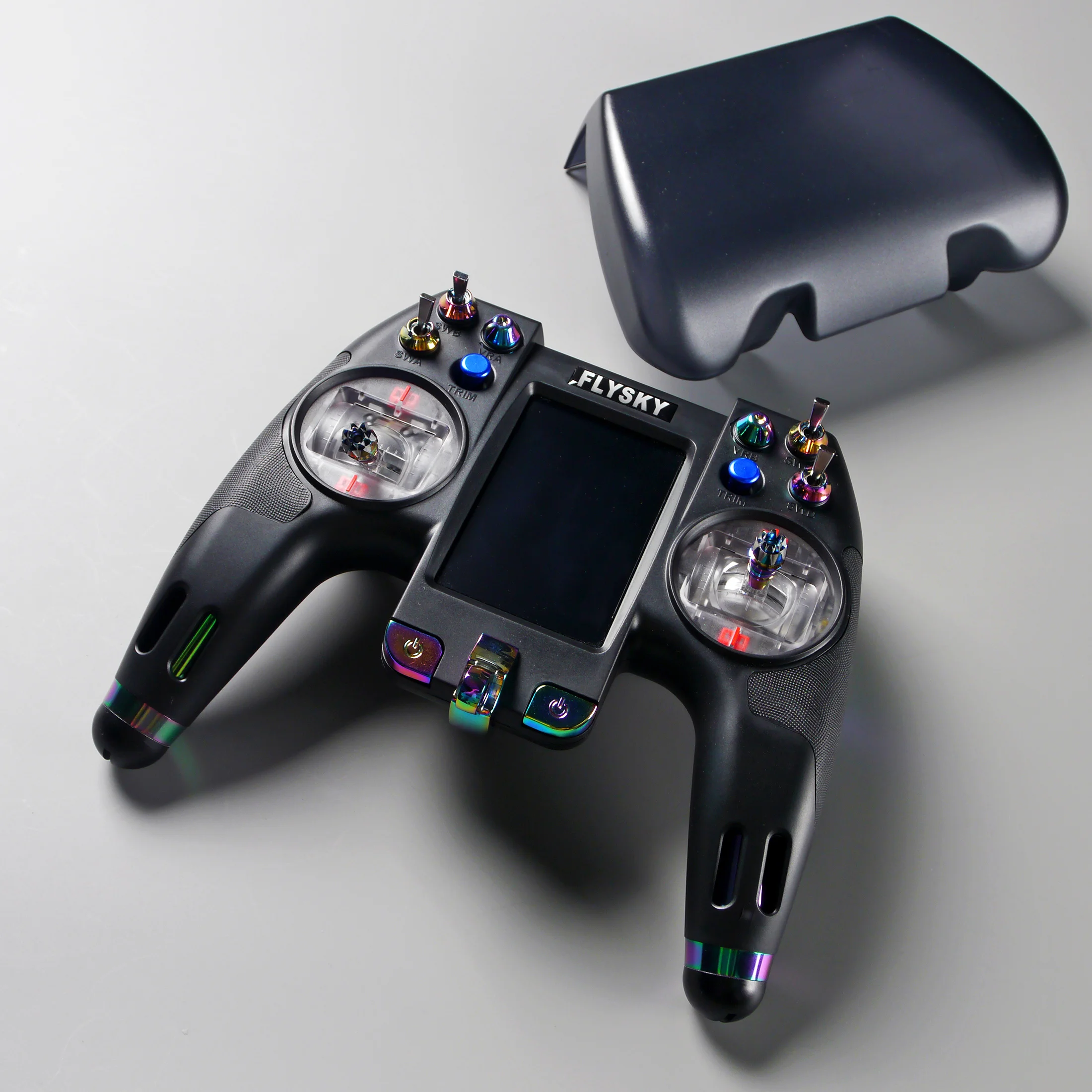

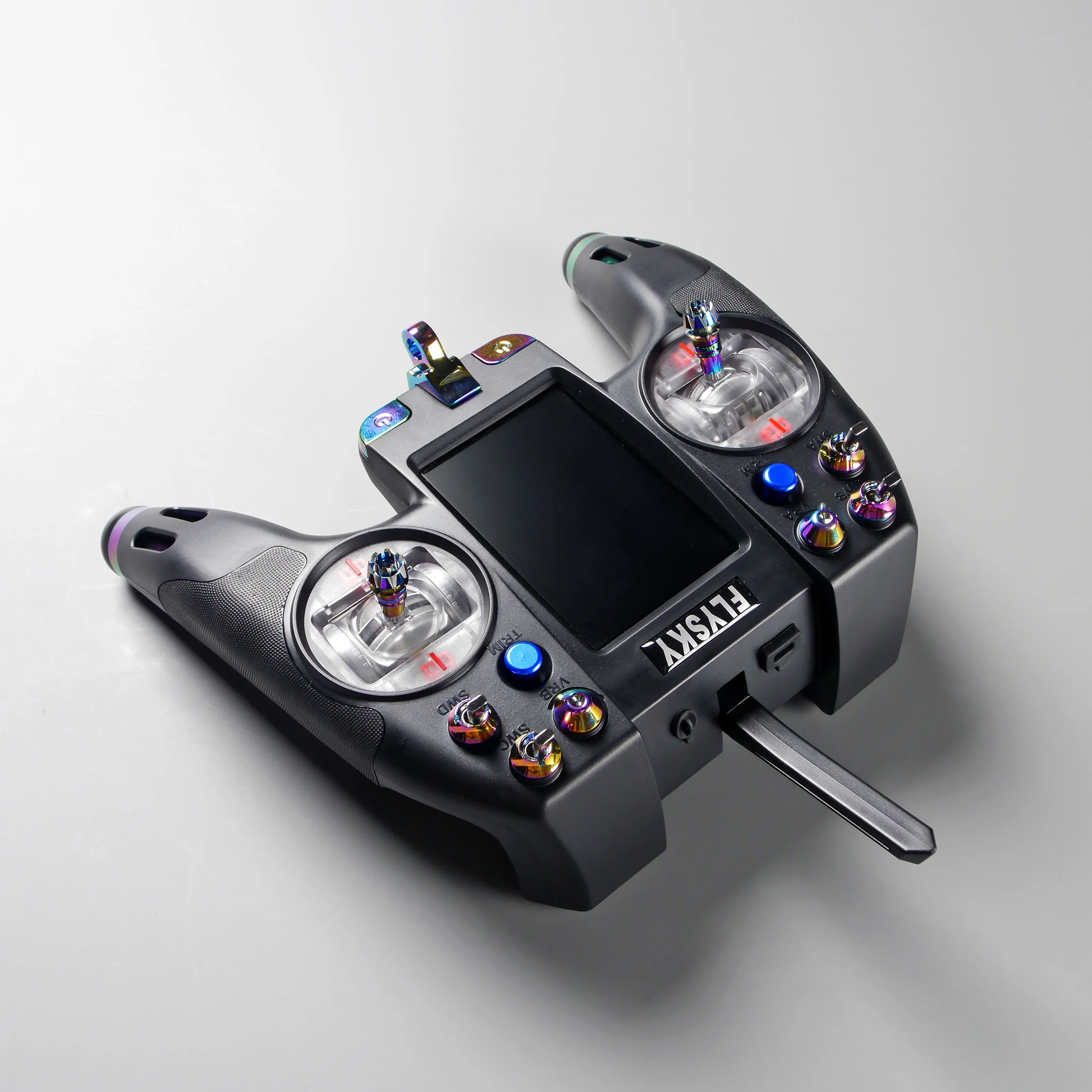

Internal RF supports 14 channels3.5 inch 320*480 color capacitive touch screen

The NV14 is equipped with a 32-bit
M4 core high-performance processor,
2MB flash 180MHz main frequency,
supplemented by industrial-grade
166MHz SDRAM.

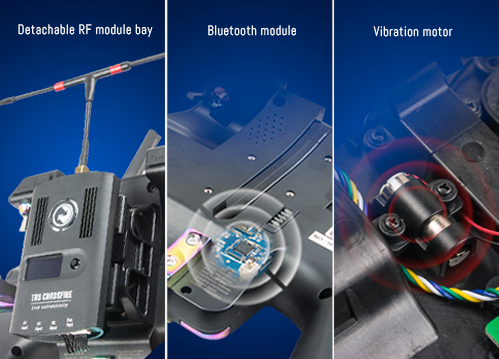

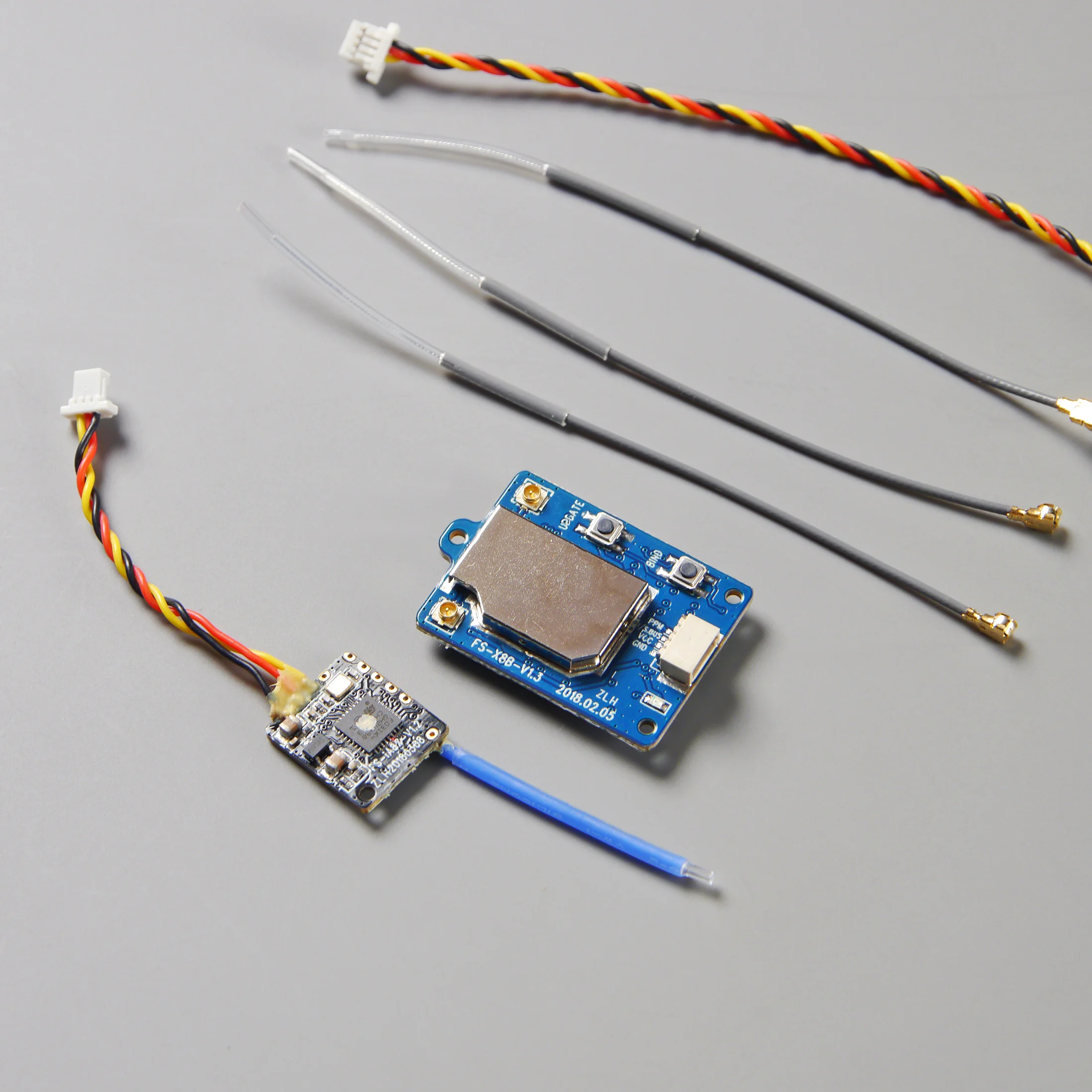

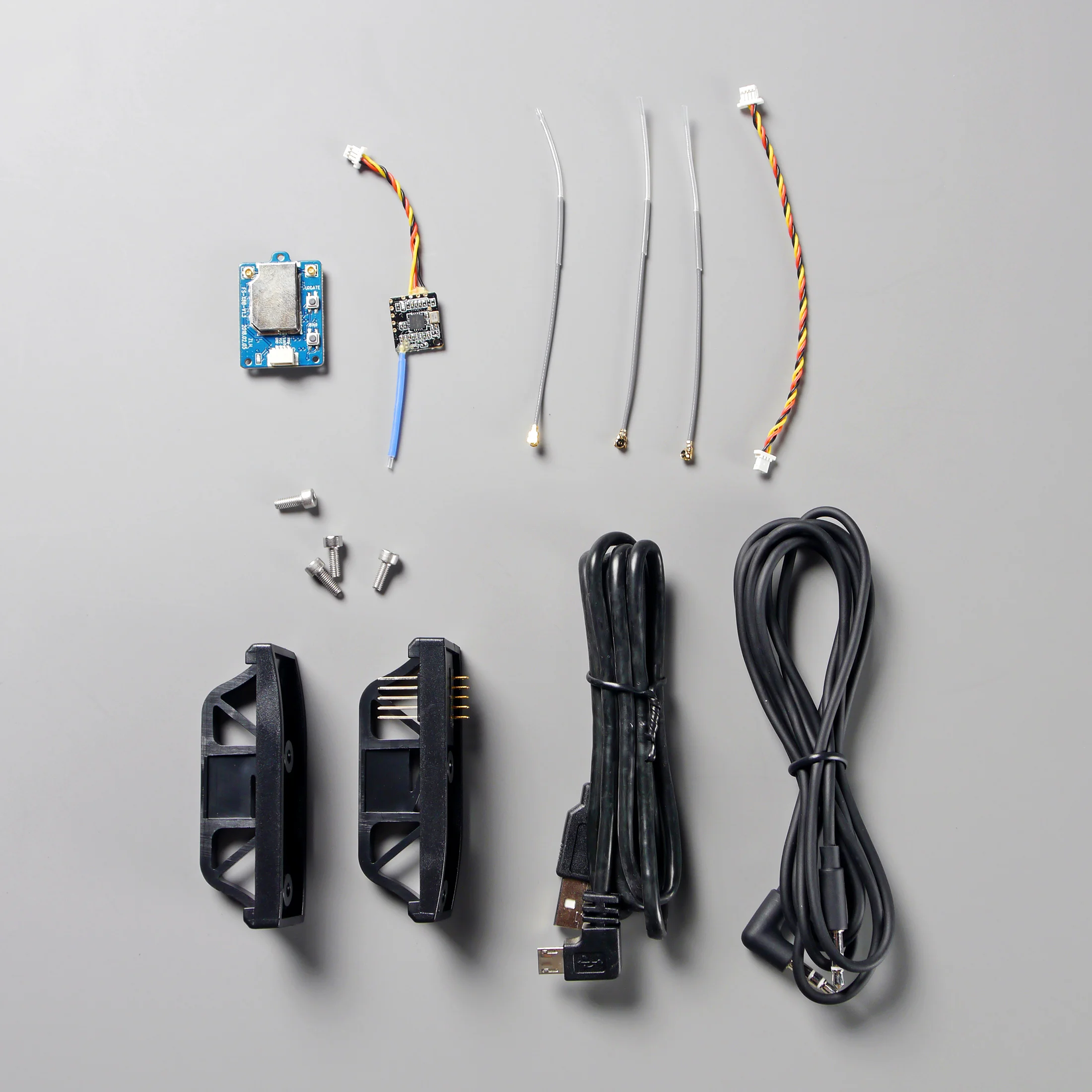

Detachable RF module bay
Bluetooth module
Vibration motor

Specifications

Channels:                    14
Freq Range:               2.408-2.475GHz
2.4GHz Protocol:       AFHDS 2A
Modulation:                FHSS
Power:                        <20dBm（EU）
Low Voltage Alarm:   <3.7 V

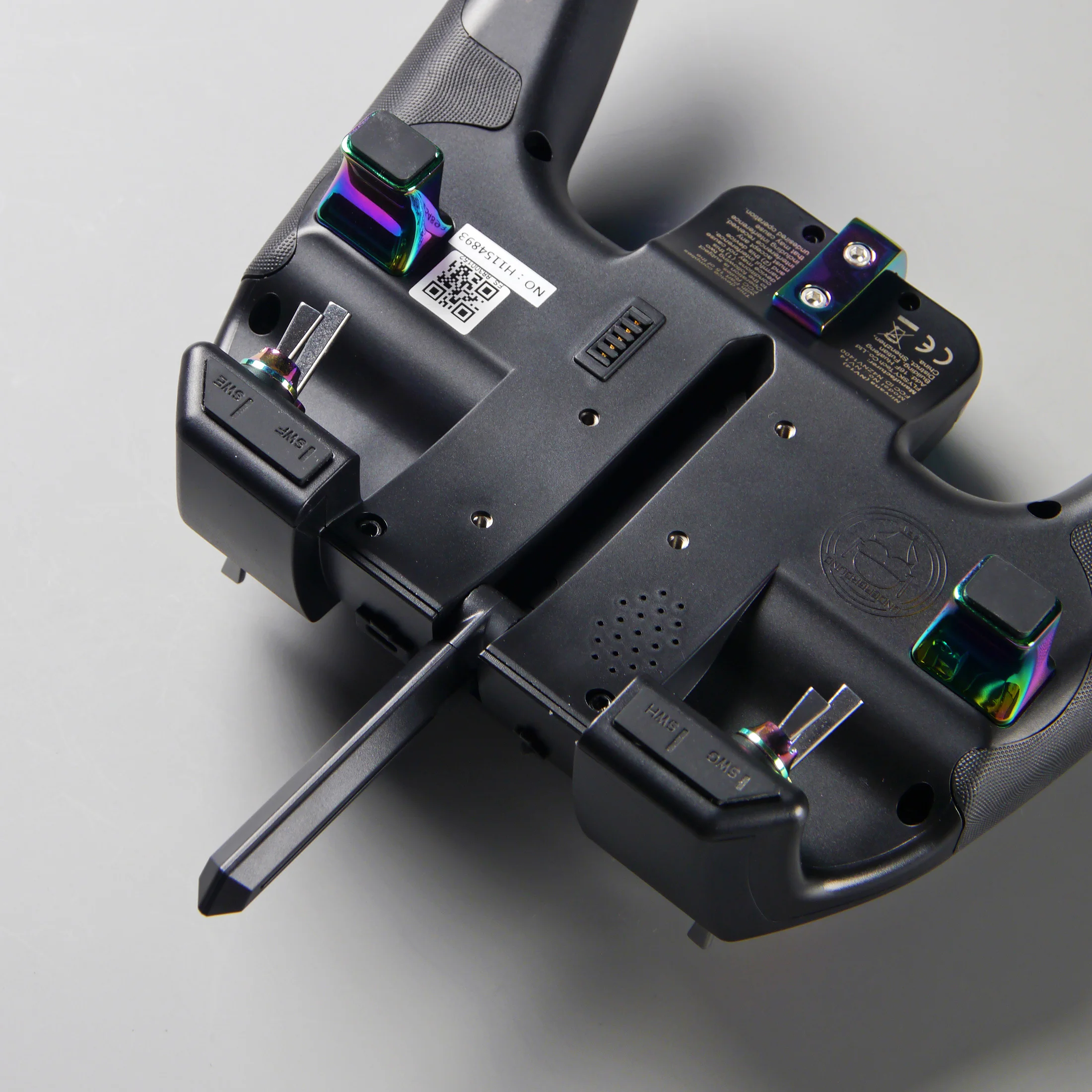

Antenna Type:           Built-in antenna and external antenna
Battery:                      2*18650
Online Update:          Yes
Dimensions:               205.2*183.7 mm
Weight:                       726.2g
Certification:              CE，FCC ID：N4ZNV1400
