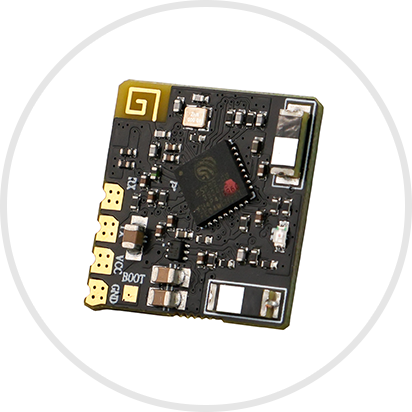

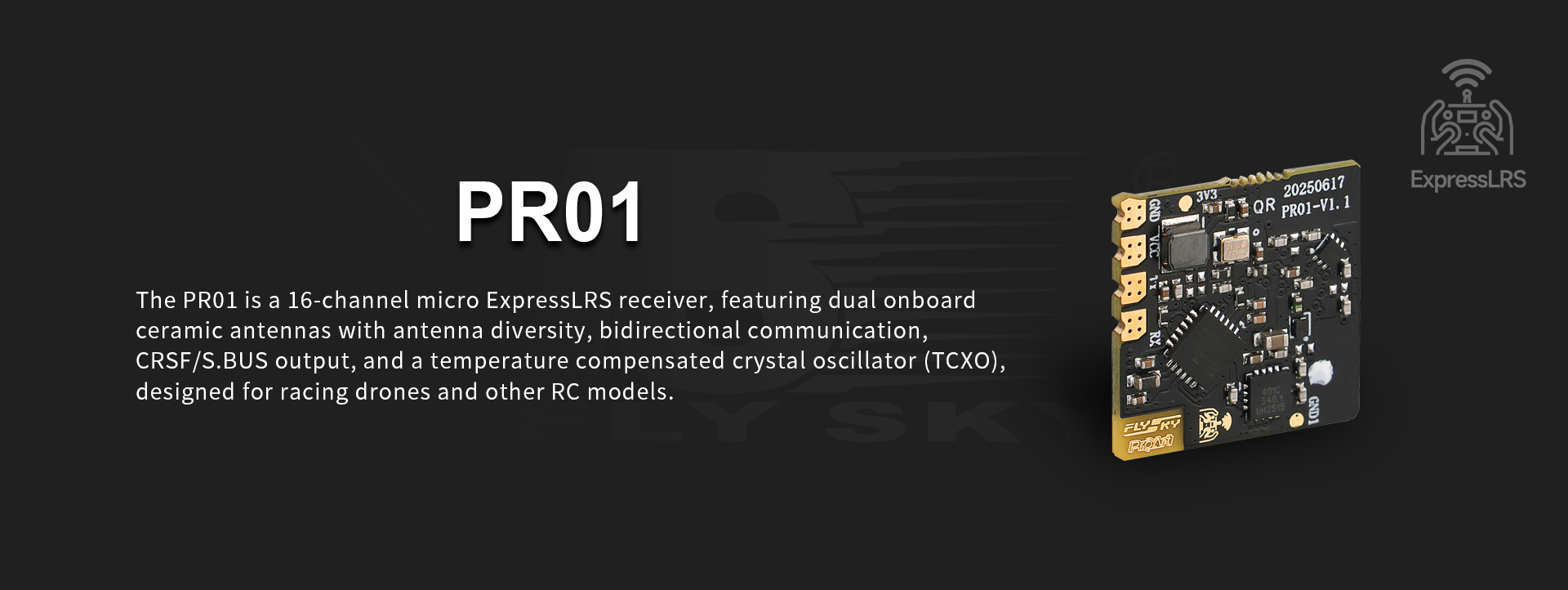

Product Model: PR01

Adaptive transmitter: Supports all transmitters and RF modules using the ELRS protocol

Model Type: FPV drones, fixed-wing aircrafts, gliders, helicopters, cars, boats, robots, UAV soccer drones, etc.

Number of channels: 16

RF: 2.4GHz ISM

Wireless protocol: ExpressLRS

Channel resolution: 4,096 steps

Antenna: Dual ceramic onboard antennas

Input Power: 4.5 ～ 9V/DC

Data Output: CRSF/S.BUS

Maximum refresh rate supported: 500Hz/F1000Hz

Minimum refresh rate supported: 50Hz

Temperature Range: -10℃ ~ +60℃

Humidity Limit: 20%-95%

Firmware update: Supports Wi-Fi wireless update or serial wired update

Dimensions: 18.0*18.0*3.7mm

Weight: 1.2g

Certification: 2A2UNPR010
