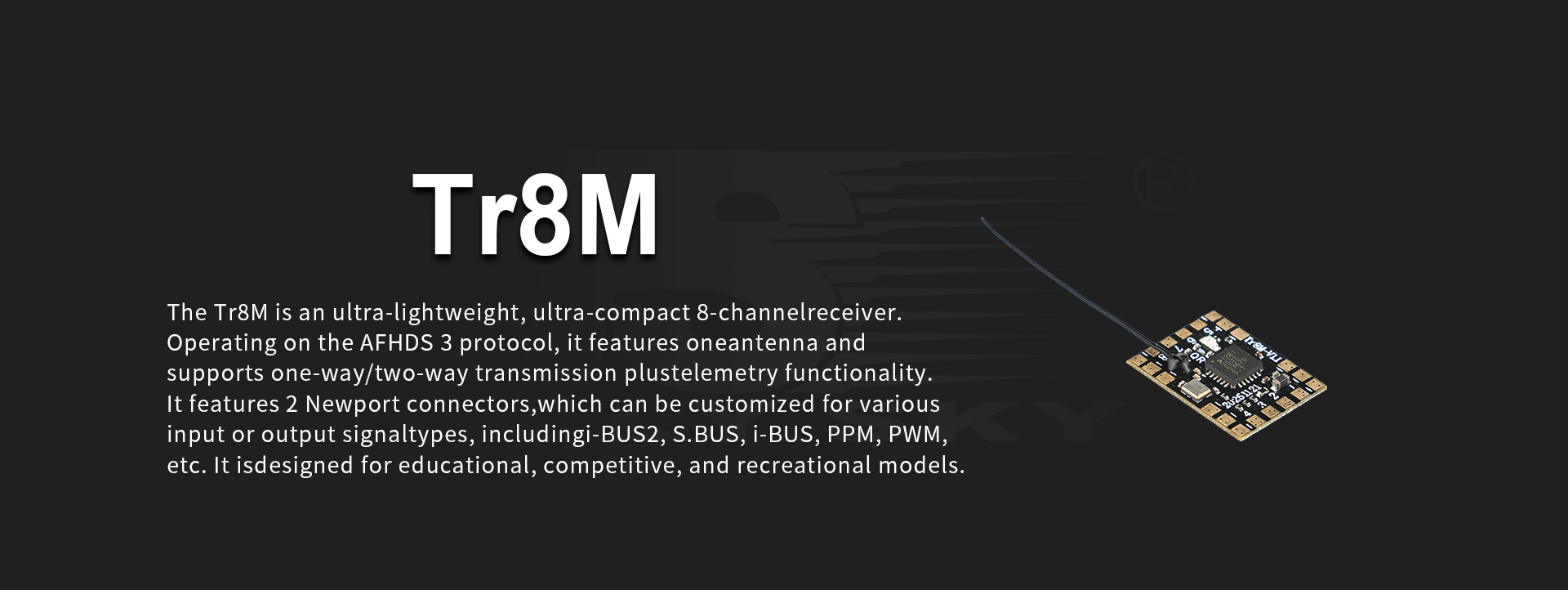

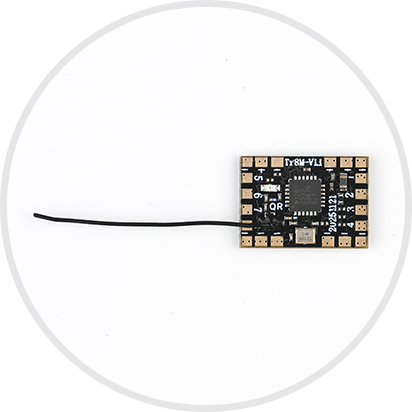

• Product Model: Tr8M

• Compatible Transmitters: Transmitters based on AFHDS 3 protocol, such as PL18 Ultra and PA01

• Compatible Models: Educational, Competition, and Recreational Models

• Number of PWM Channels: 8

• Number of Bands：171

• RF: 2.4GHz ISM

• RF Protocol: AFHDS 3

• Maximum Power: <20dBm (e.i.r.p.) （EU）

• Antenna: Single Antenna

• Operating Voltage: 3.0~9V/DC

• Resolution: 4096

• Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS

• Temperature Range: -10℃ ~+60℃

• Humidity Range: 20%~95%

• Firmware Update: Supported

• Dimensions: 16.5*11.8*2.5mm

• Weight: 0.5g

• Certifications: CE, SRRC, FCC ID: 2A2UNTR8M00
