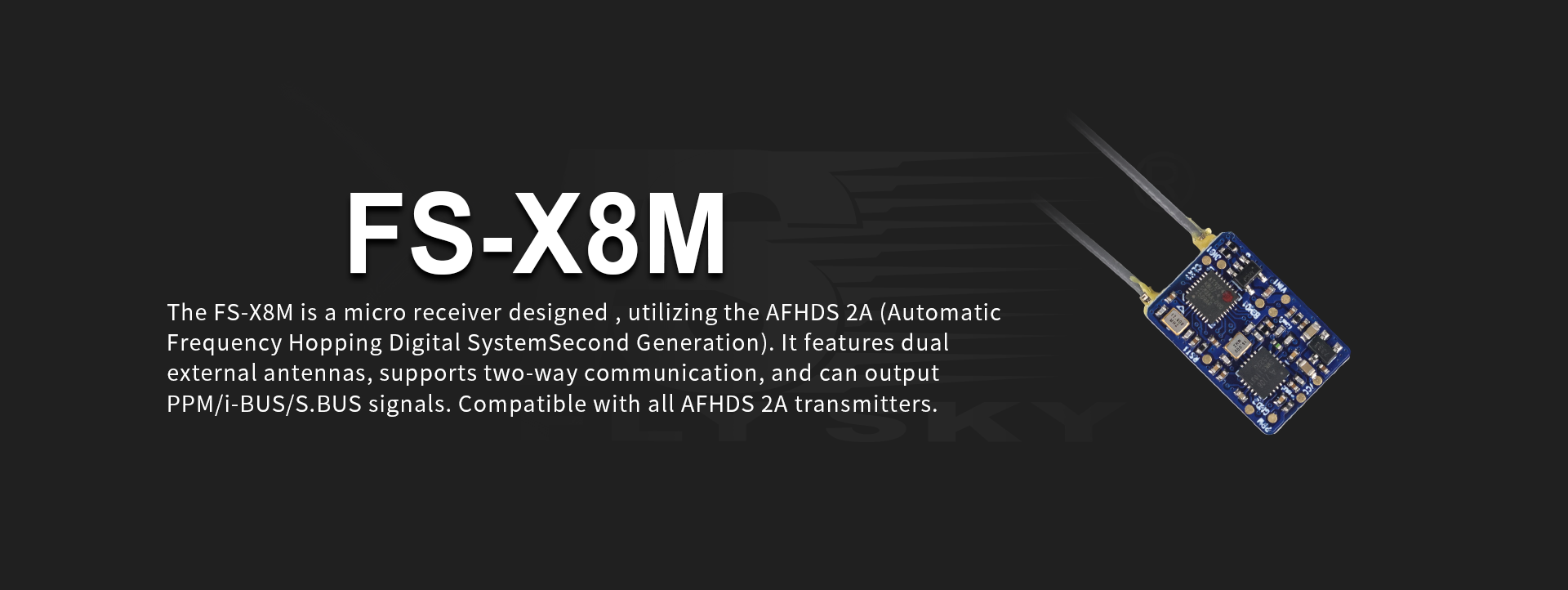

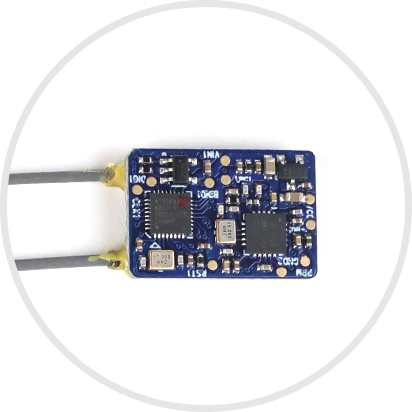

• Product Model: FS-X8M

• Compatible Transmitters: FS-i6 (transmitters with AFHDS 2A protocol)

• CompatibleRC Models: Racing Drone

• RF: 2.4GHz ISM • Maximum Power: < 20dBm (e.i.r.p.) （EU）

• RF Protocol: AFHDS 2A

• Resolution: 1024

• Antenna Interface: Gen1 ipex

• Antenna:Two antennas (Coaxial Cable Antenna)

• Distance: More than 500m (Ground distance free from abnormal RF interference)

• Operating Voltage: 3.5~9V/DC

• Data Output: PPM/i-BUS/S.BUS

• Firmware Update: Not Supported

• Temperature Range: -10℃ ~ +60℃

• Humidity Range: 20%~ 95%

• Dimensions: 19.0*13.0*4.0mm

• Weight: 0.9g (antenna excluded)

• Certifications: CE，FCC ID: 2A2UNX8M00
